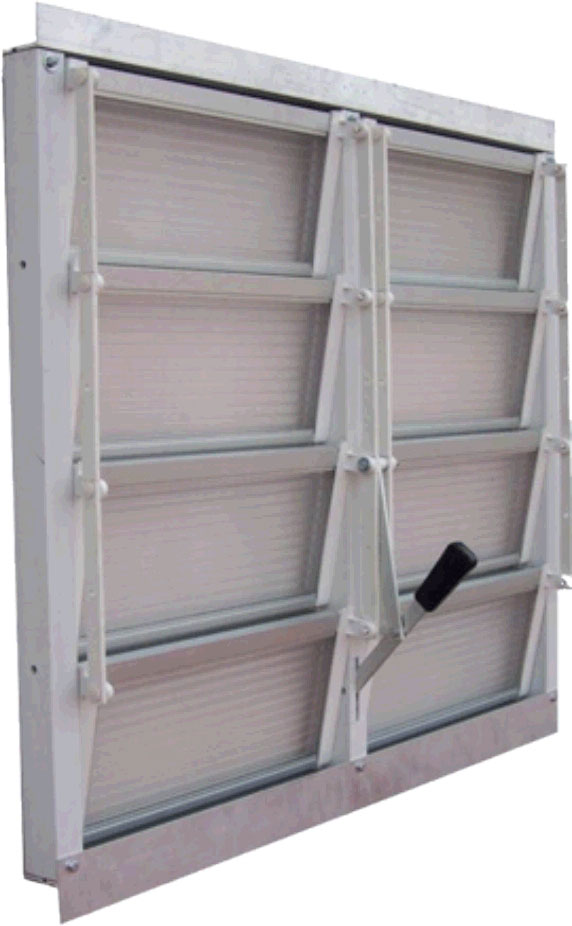

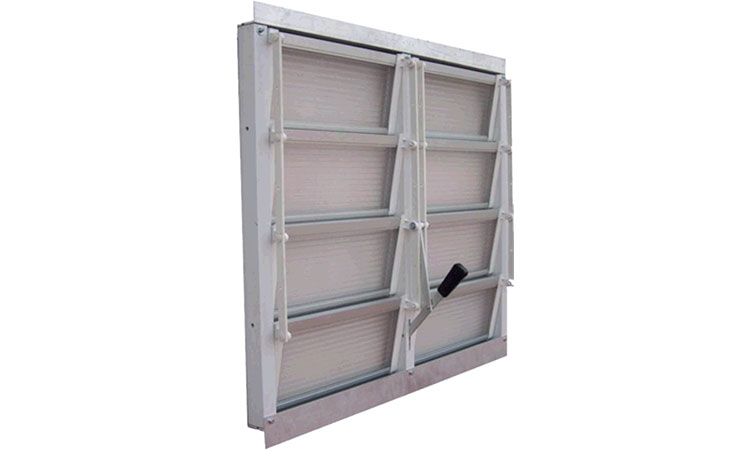

TECHNICAL DATA
- 10mm, anti UV , alveolar polycarbonate plates
- In the plates’ border there is a particular aluminum outline running lengthwise to make the plate itself stronger and to seal the plates hermetically

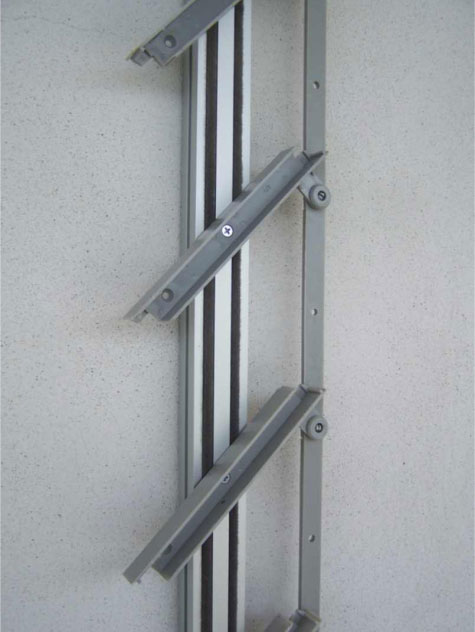

- Plates-holders pivot on side uprights, rectangular shaped, made in PVC or aluminum
- Uprights joined together by crossbar made in anodized aluminum
- Plates-holders are linked between themselves throught a nylon connecting rod
CENTRAL FULCRUM MODEL
WINDOW 15 ...BG (aluminum crossbars + gasket)
WINDOW 15 ...G (aluminum “L” shape crossbar + gasket)
WINDOW 15 ... (aluminum crossbar no gasket)
VASISTAS MODEL
WINDOW 15 ...BGW (aluminum crossbars + gasket)
WINDOW 15 ...GW (aluminum “L” shape crossbar + gasket)
WINDOW 15 ...W (aluminum crossbar no gasket)
TECHNICAL SHEET
| MODEL | N° OF PLATES | WINDOW’S HEIGHT (cm) |
|---|---|---|
| WINDOW 15/1 BG | 1 | 18 |
| WINDOW 15/2 BG | 2 | 33 |
| WINDOW 15/3 BG | 3 | 48 |
| WINDOW 15/4 BG | 4 | 63 |
| WINDOW 15/5 BG | 5 | 78 |
| WINDOW 15/6 BG | 6 | 94 |
| WINDOW 15/7 BG | 7 | 109 |
| WINDOW 15/8 BG | 8 | 124 |
| WINDOW 15/9 BG | 9 | 139 |
| WINDOW 15/10 BG | 10 | 154 |
| WINDOW 15/11 BG | 11 | 170 |
| WINDOW 15/12 BG | 12 | 184 |
| WINDOW 15/13 BG | 13 | 200 |
| WINDOW 15/14 BG | 14 | 215 |
